Product Description
For Your Venting Needs... We Got You!
This venting system is only compatible with the

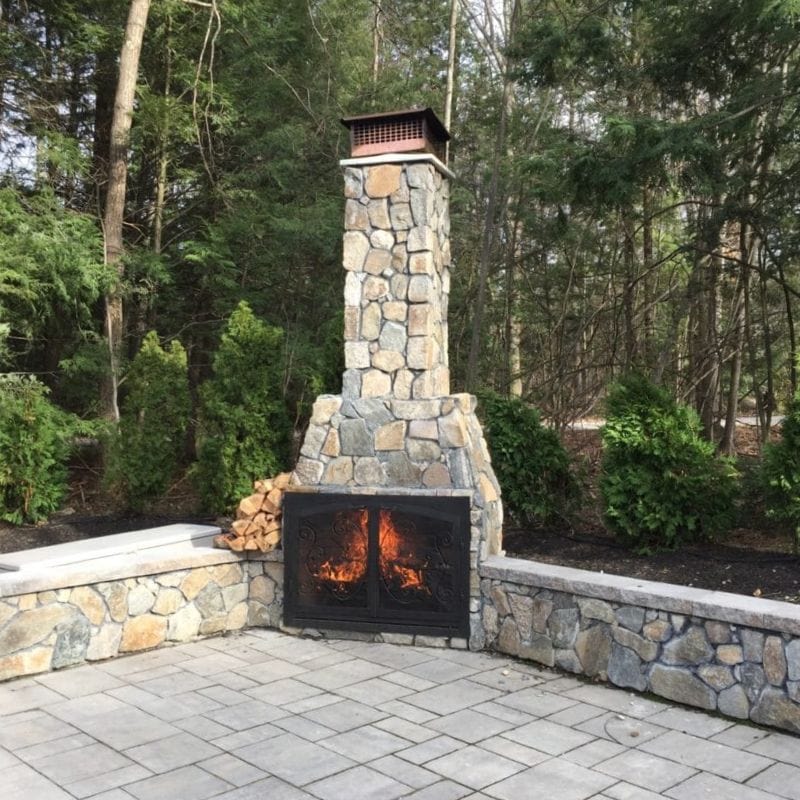

The Mason-Lite Refractory Chimney System is designed to integrate seamlessly with Mason-Lite Wood Burning Fireplace. For most outdoor installations, folks typically go with this Mason-Lite chimney system. This masonry chimney is made of the same pumice material as the Mason-Lite fireplace so everything matches!
Mason-Lite refractory chimney system may be used on 33, 39, 44, and 49-inch Fireplace with a maximum system height of 30' without additional support.
The 43-inch See Through, 63-inch, and 75-inch fireplace would need to be ordered specially to use a dual 14" Masonry Chimney and would have a maximum system height of 20'.

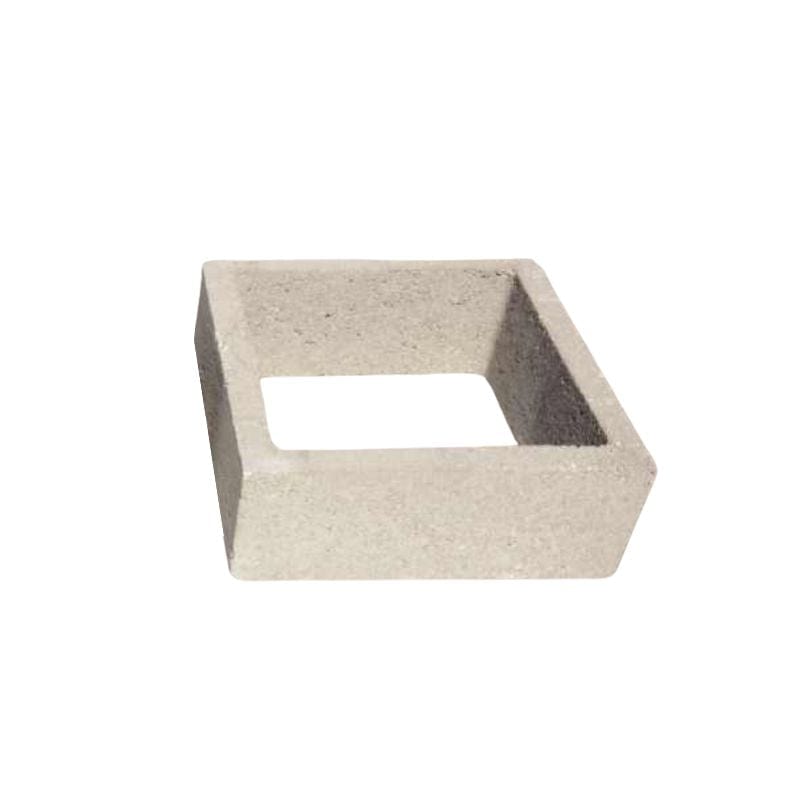

Depending on your needs, you may either get your chimney components individually or in a kit. The individual parts are:
What's Included in the kits:
4-ft Patio System Kit:
- (1) Inner Liner Starter (MCL-414)
- (6) Inner Liner (MCL-814)
- (6) Outer Liner (MCS-814)
- 50 lb. Refractory Mortar
8-ft System Kit:
- (1) Inner Liner Starter (MCL-414)
- (12) Inner Liner (MCL-814)
- (12) Outer Liner (MCS-814)
- 50 lb. Refractory Mortar
16-ft System Kit:
- (1) Inner Liner Starter (MCL-414)
- (24) Inner Liner (MCL-814)
- (24) Outer Liner (MCS-814)
- 50 lb. Refractory Mortar
This is an example of how the refractory chimney is stacked:
Masonry Chimney Layout & Specs
Masonry Chimney Stack Example
Damper/Anchor Plate Installation Guide
